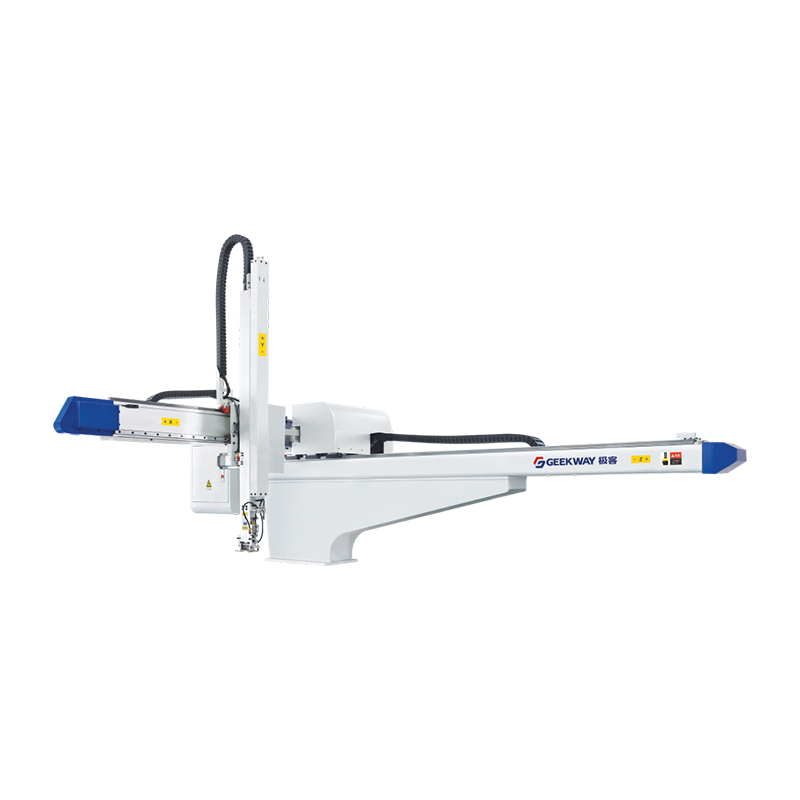

GM2 SERIES-Two Axis Servo Driven Beam Robots

Aluminum extrusion side structure for drawing, easy adjustment, 800 single-section, 1100-1300 double-section, double-section arm, belt speed doubling mechanism, in addition to reducing the height of the machine, can also increase the speed up and down.

50-550 T
Bearing
GX-08M2
Controller
7.5~9 SEC
Time
3~5 KG
Load

QQ chat Inquiry

Product detailsPosition：Home >Products > Product details

DESCRIPTION

Extrusion Technology of Integral Forming Aluminum Alloy

Aluminum extrusion side structure for drawing, easy adjustment

Arm structure

800 is single-section type, 1100-1300 is double-section type, double-section arm, using belt speed doubling mechanism, besides reducing the height of the whole machine, it can also increase the up and down speed.

Two-axis AC servo motor drive

Two sets of AC servo motors drive the horizontal/forearm up and down. It is fast and can realize the function of two-axis arrangement and stacking.
