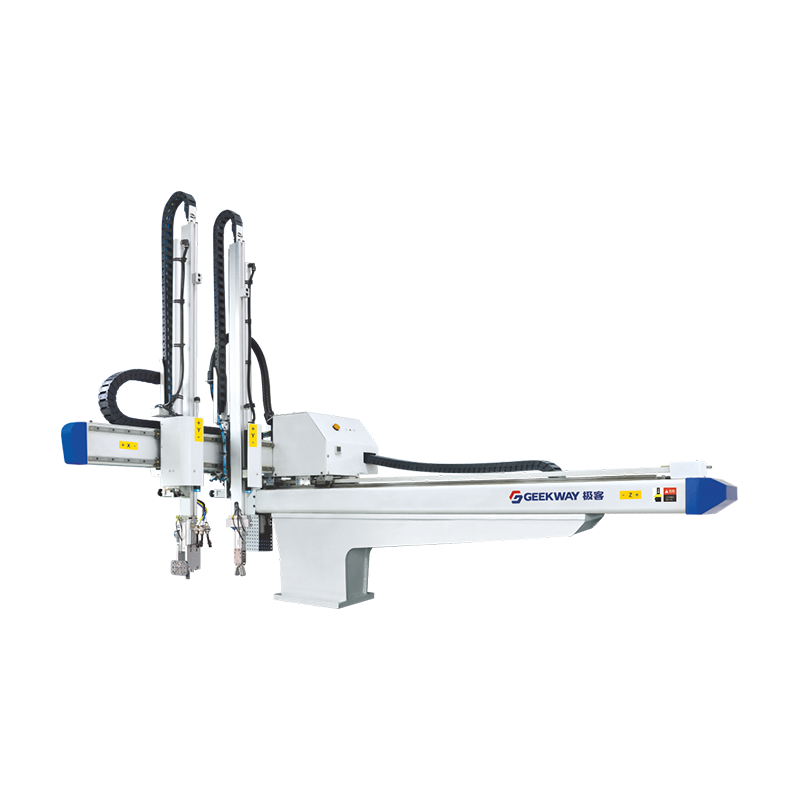

GB SERIES-Single Axis servo Driven Beam Robots

Extrusion Technology of Integral Forming Aluminum Alloy

Aluminum extrusion side structure for drawing, easy adjustment

Arm structure

750-850 is single-section type, 850-1100 is double-section type, double-section arm, using belt speed doubling mechanism, in addition to reducing the height of the whole machine, it can also increase the up and down speed.

Single Axis AC Servomotor Drive

AC Servo Motor Drive to Achieve Multi-point Parking Function in Horizontal Direction to Satisfy Customer Sequencing Requirements
